Door Operators
General Data
- Fully assembled
- Compact dimensions
- Low noise drivebelt
- Ideal fot linear systems
- 400Kg max door weight
- Speed controlled
- No limit switches
Supplied with | |
|---|---|
Universal Fixing Brackets | 3 Year Warranty |
Belt/Panel Connecting Bar |

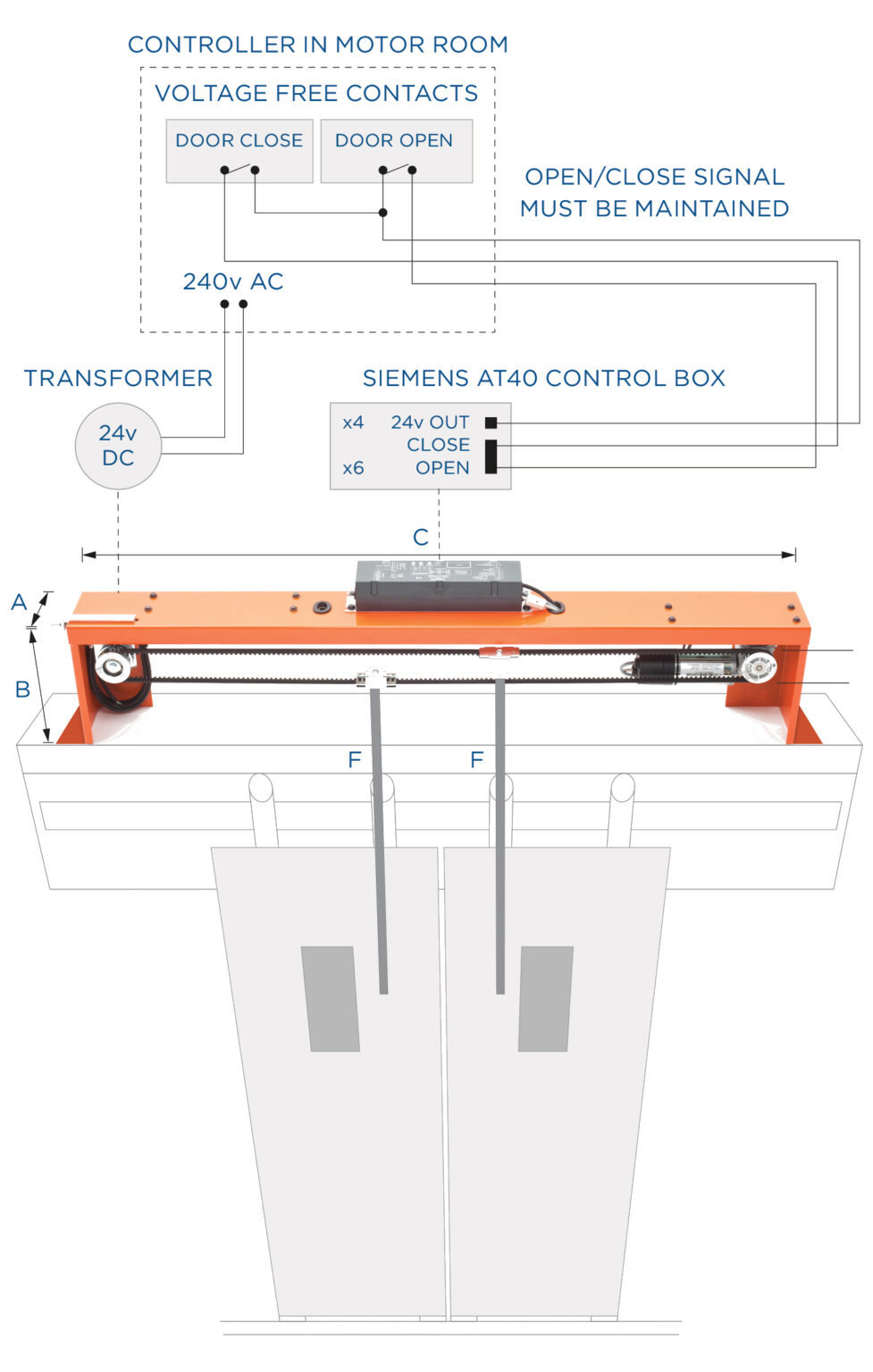

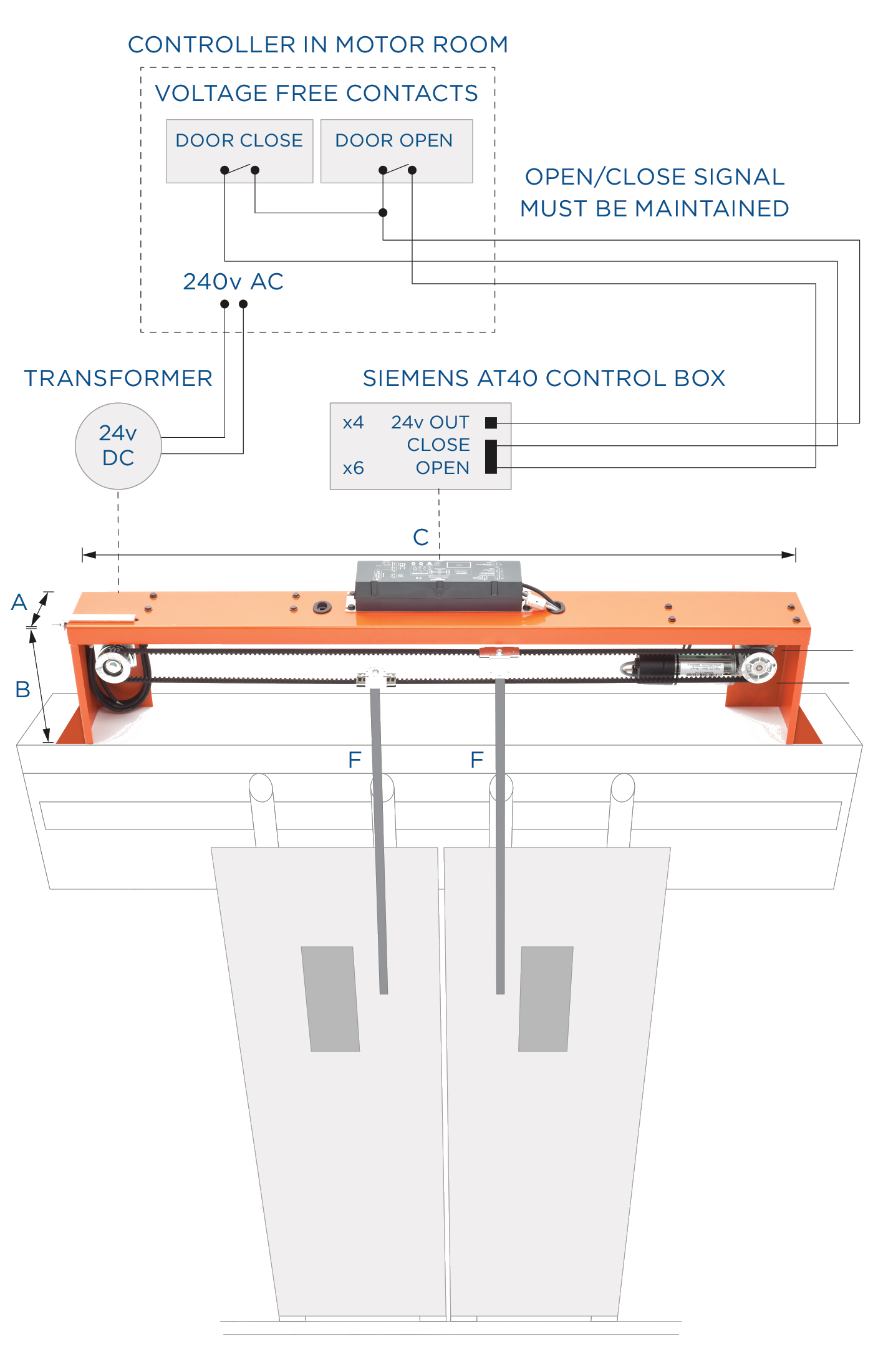

DIMENSIONS | |
|---|---|
A (Depth) | 130mm |
B (Height) | 240mm |
C (700-900) | 1260mm |
C (900-1100) | 1460mm |
D (Car to Belt) | 140mm |
E (Pulley) | 55mm |
F (Door pick up by others) |
