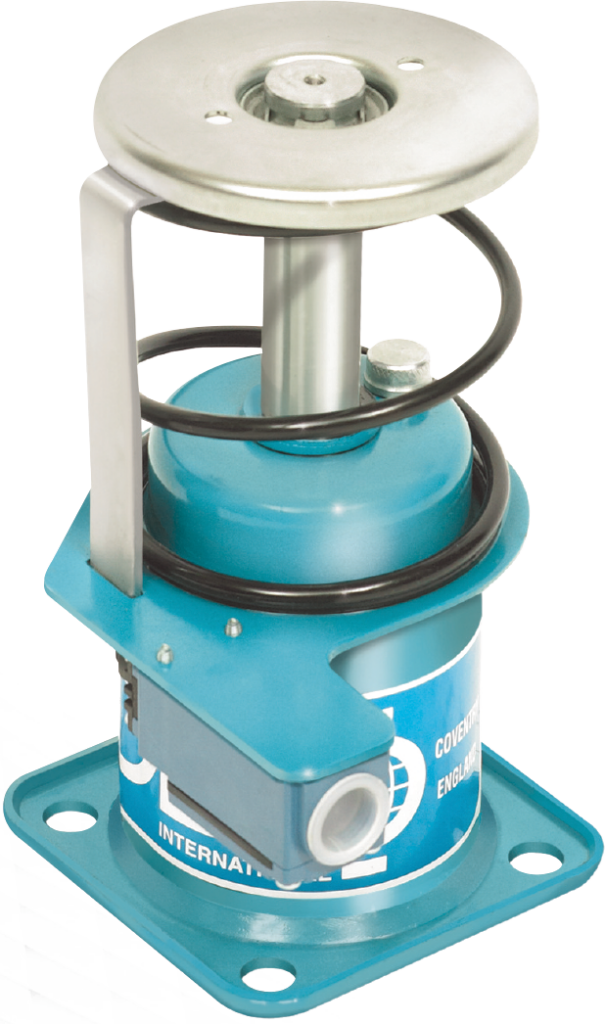

LSB10 Oil Buffer

Reduced stroke: Rated speed with terminal speed limiting device, based on ASME A17.1 rule 2.22.4.1.2

  • 1.0 MS Max rated speed
  • 370 – 2000kg Load range
  • Compact & lightweight
  • Quick and easy installation
  • Pre-charged with oil
  • Common application
Model
LSB 10
SEB 16
SEB 18
SEB 20
SEB 25
Rated Speed – m/s
1.00
1.60
1.80
2.03
2.54
Maximum Speed (115%) – m/s
1.15
1.84
2.07
2.33
2.92
Stroke (min) – mm
73.3
173
219
279
435
Impact Mass Range – Kg
380 – 3250
450 – 4545
450 – 4545
450 – 4545
450 – 4545
Height (fully extended) – mm
222
540
643
777
1126
Weight (dry) – Kg
3.6
11.2
12.8
14.8
20.0
Oil Volume – litres
0.5
1.5
1.8
2.2
3.3
Reduced Stroke (ASME A17.1) – m/s
1.47
2.26
2.54
2.87
3.59

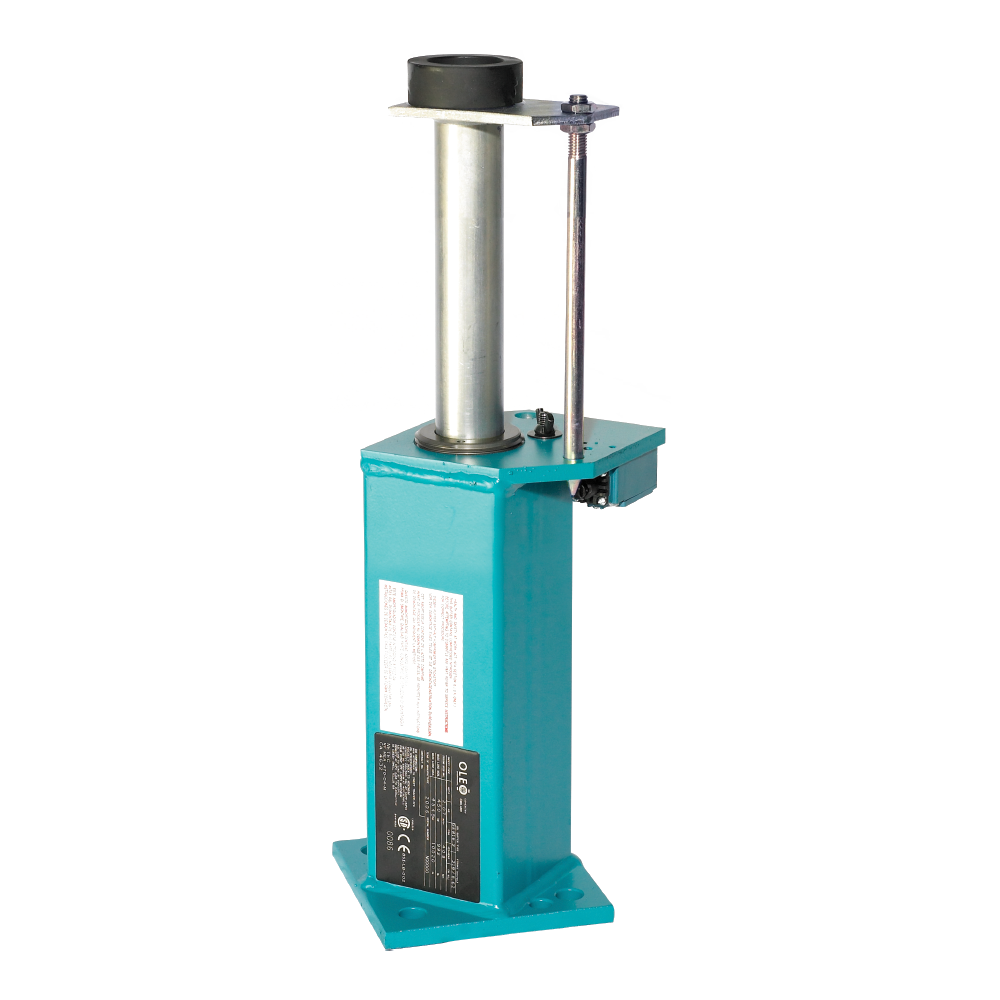

SEB 16

  • 1.6 M/S Max rated speed
  • 450 – 4545kg load range
  • Quick & easy installation

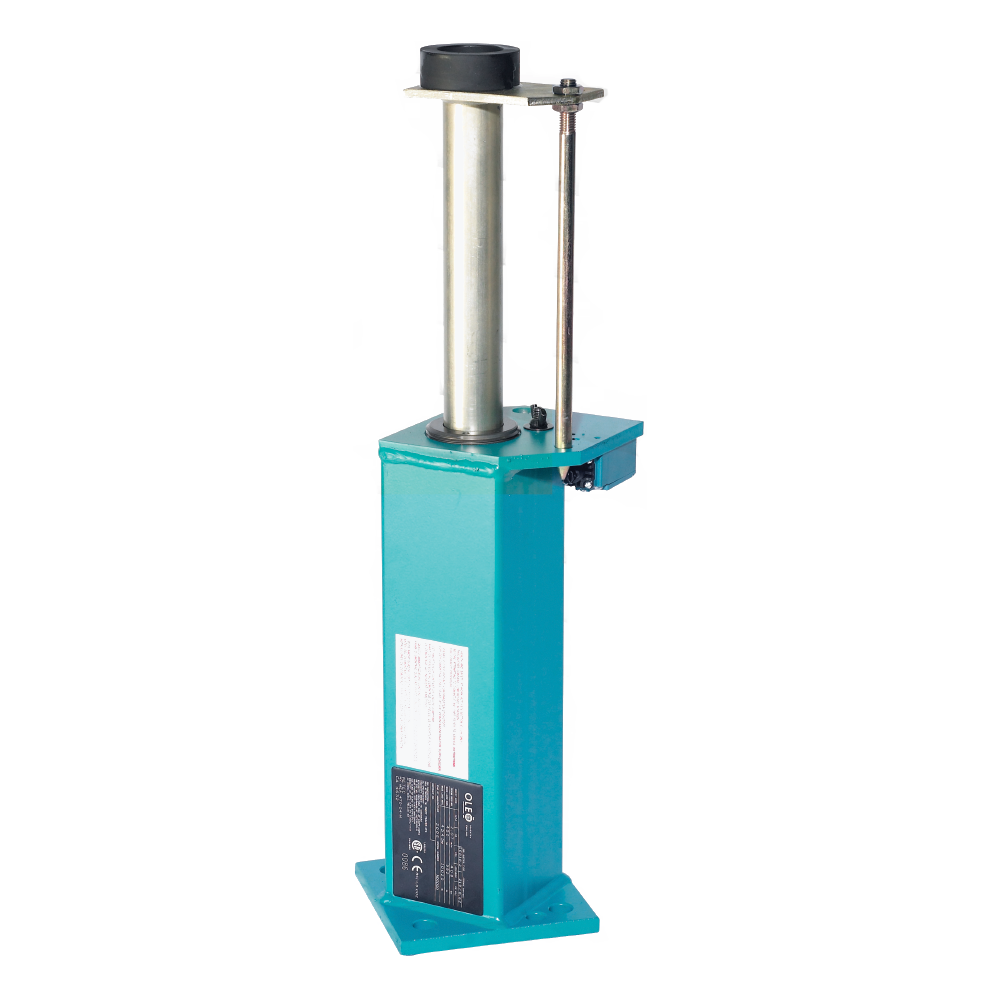

SEB 18

  • 1.8 m/s max rated speed
  • 450 – 4545kg load range
  • quick & easy installation

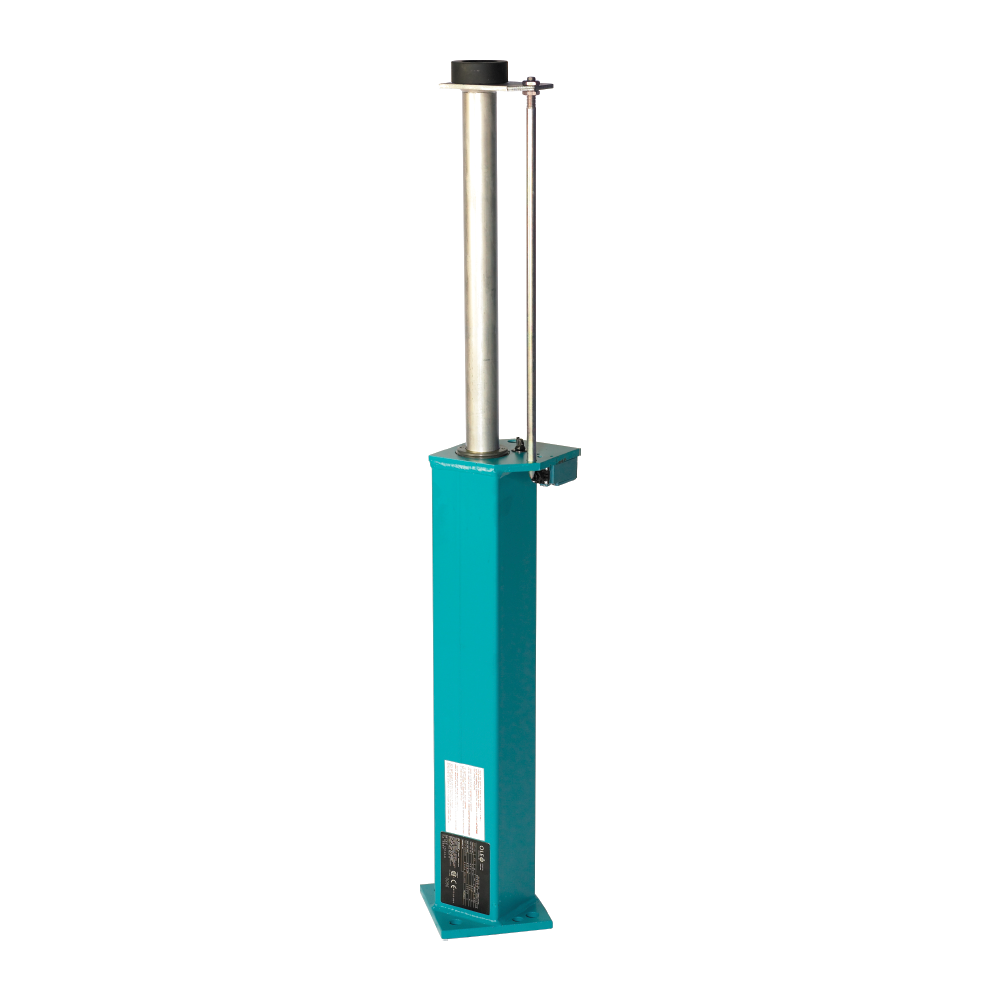

SEB 25

  • 2.54 m/s max rated speed
  • 450 – 4545kg load range
  • quick & fast installation

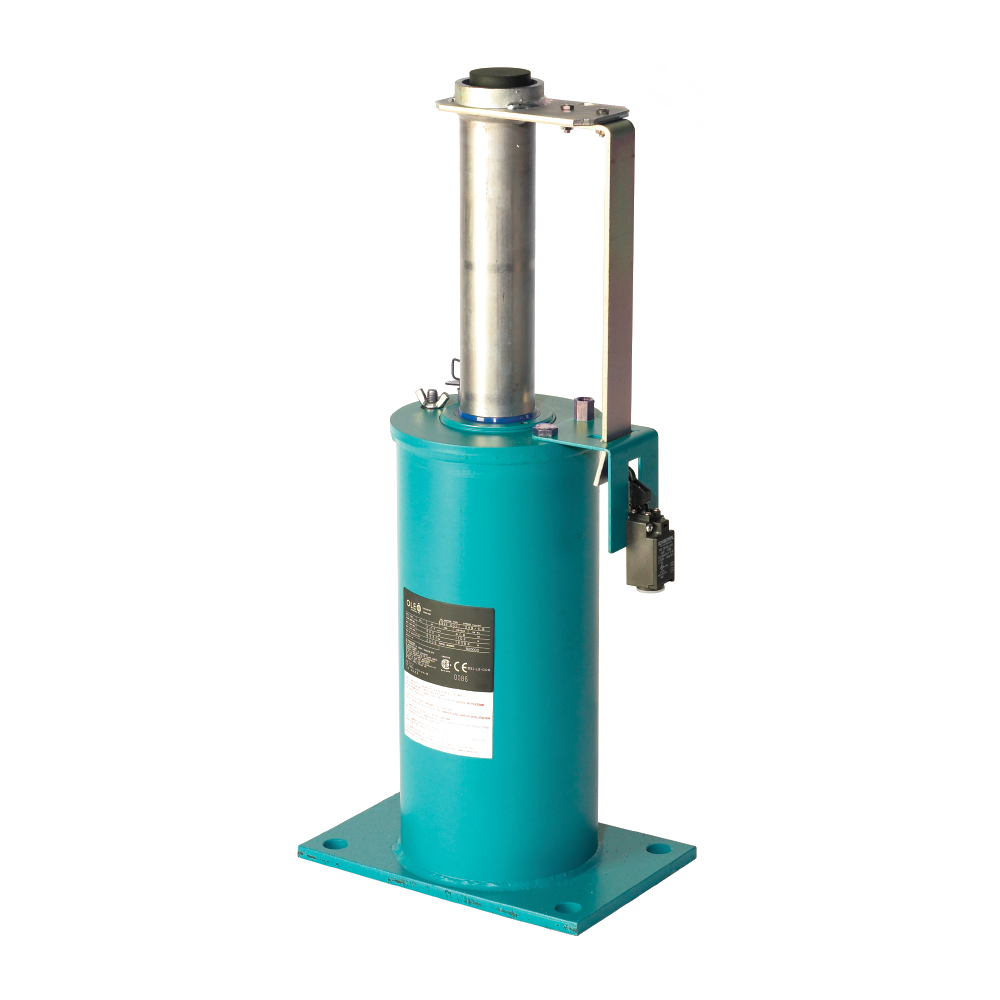

LB 16

  • 1.6 m/s max rated speed
  • 500 – 8330kg load range
  • quick & easy installation
